Staircase mold

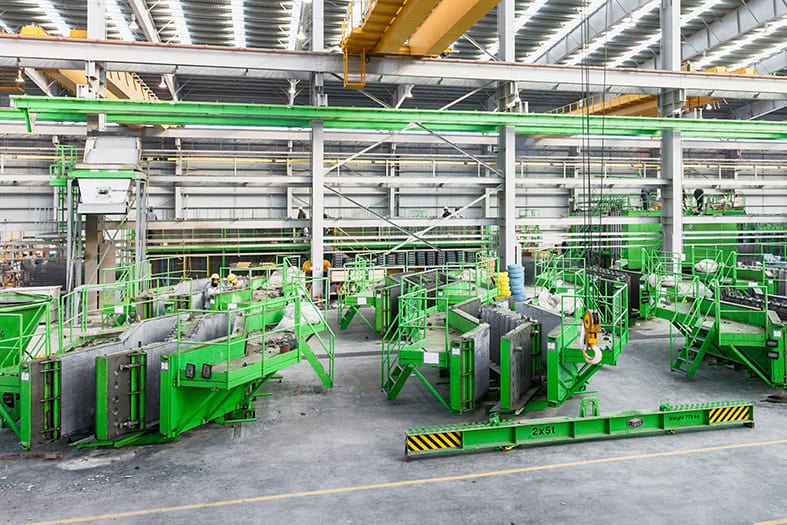

The Elematic staircase mold P7/S5 is designed to produce two staircase elements simultaneously.
Staircase mold P7-D-1-m-sl
| Length | 7000 mm |
|---|---|
| Width, closed | 4800 mm |
| Width, open | 5800 mm |
| Height | 1650 mm |
| Weight | approx. 8300 kg |
| Height of precast product | 1245 mm |
| Length of precast product | 5520 mm |
Staircase mold S5-D-2-m
| Length | 4200 mm |
|---|---|
| Width | 2160 mm |
| Height | 1680 mm |
| Weight | approx. 3365 kg |
| Height of precast product | 1300 mm |
| Length of precast product | 3700 mm |

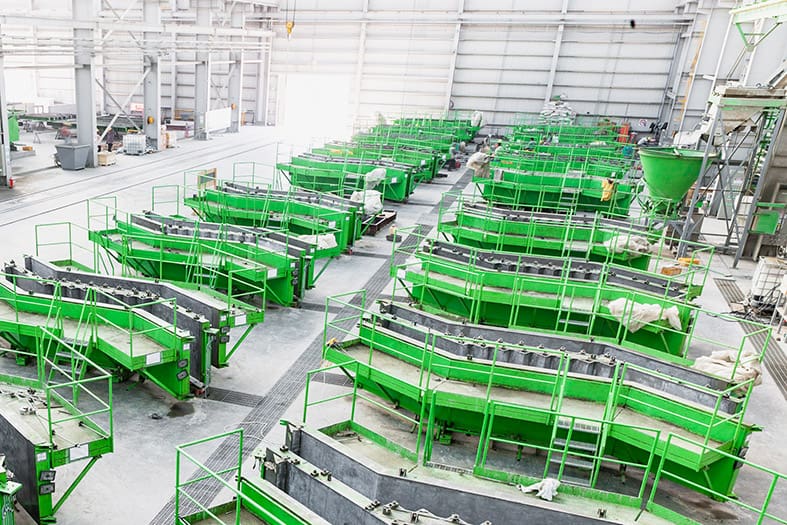

The staircase mold P7 consists of the profiled steel frame with fixed middle wall and movable side forms. The movable side forms are equipped with service platforms.
The staircase mold S5 is formed of the profiled steel frame with the fixed middle wall and bottom
side forms. On both sides of the frame are hinged side walls. At the ends of the middle
wall there are also hinged end sides where the side walls are fastened with the key secured
latches.
The mold is heated by the heating pipe in the middle wall.
Compatibility
Precast product
