Skip S5

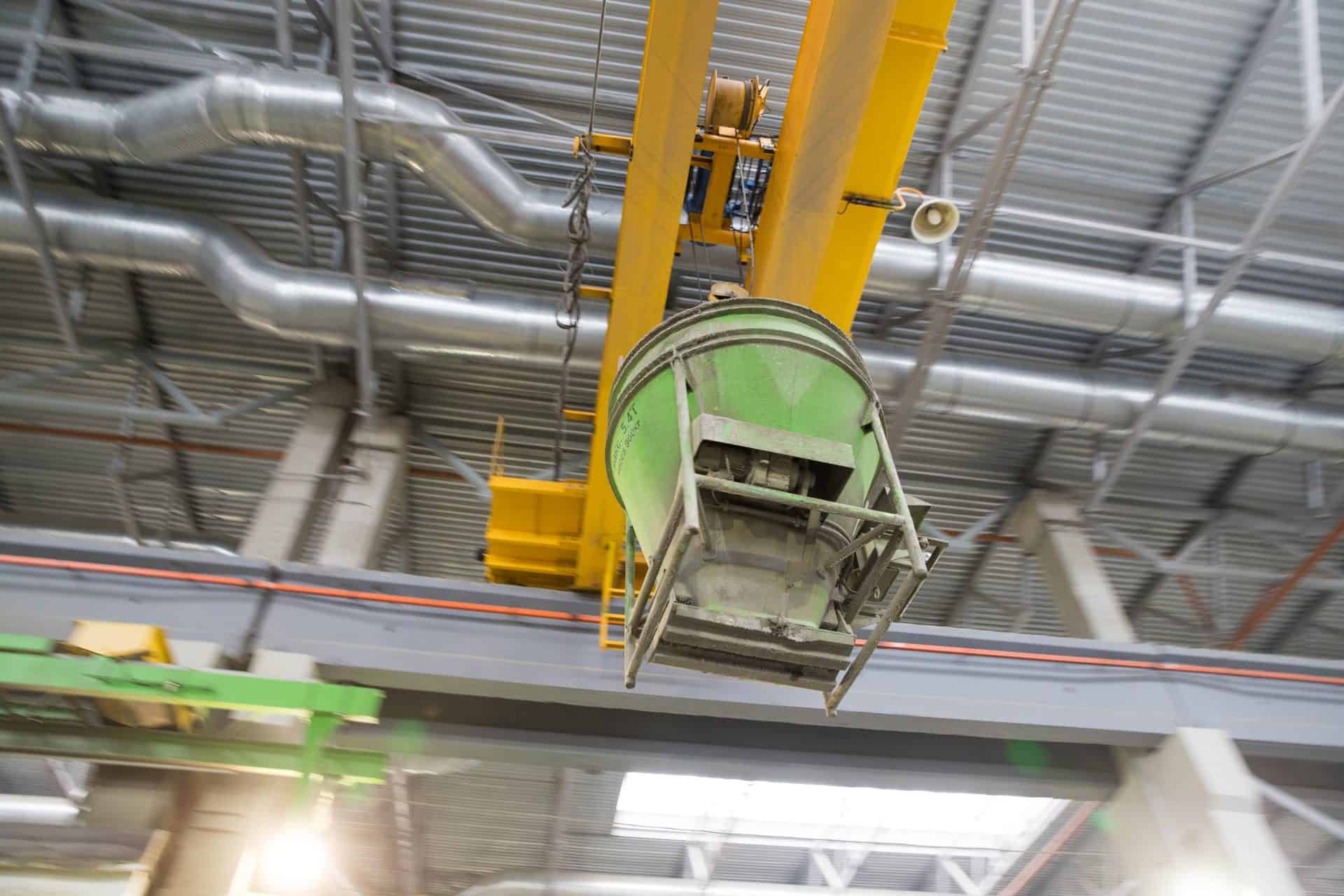

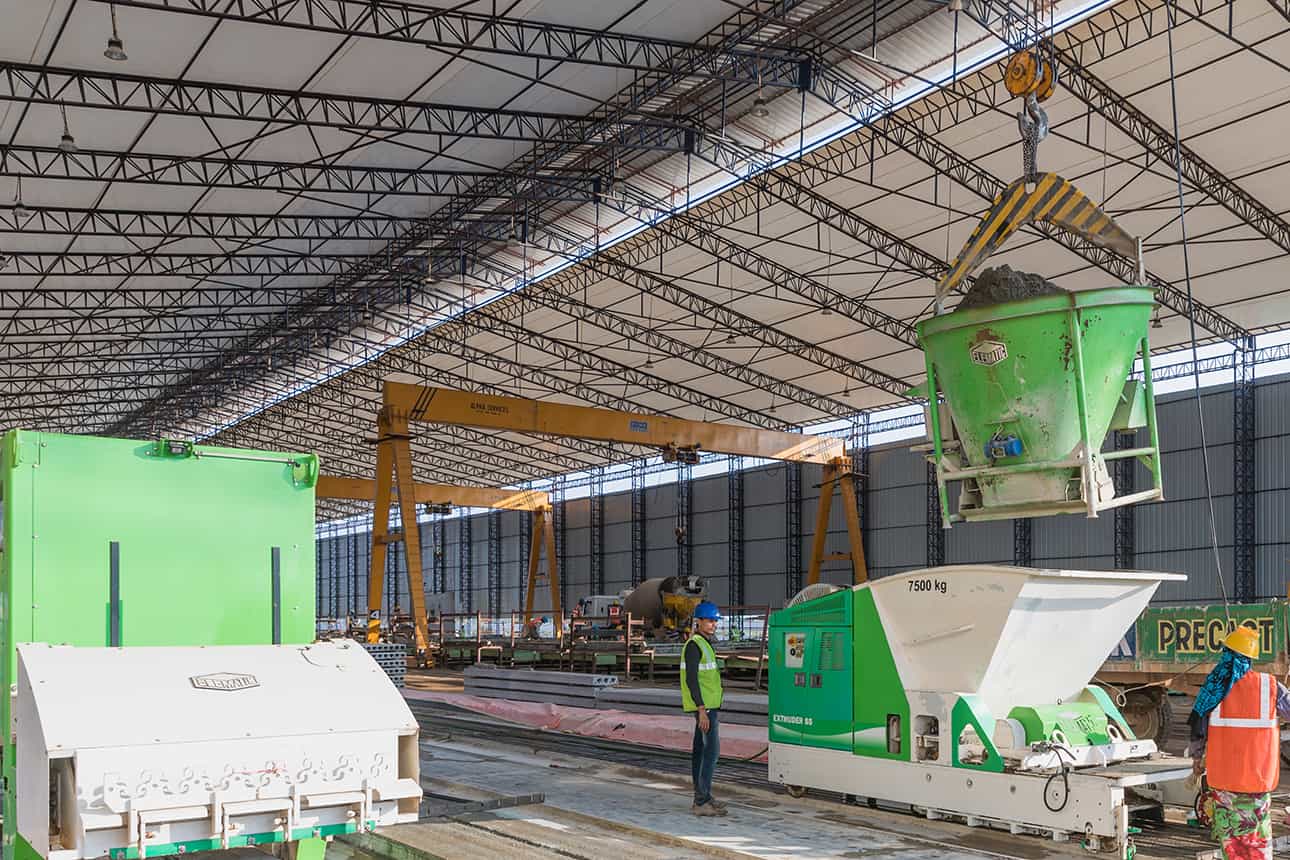

The Elematic Skip S5 is used to transport concrete to an extruder in precast concrete production. It can be moved between the B&M plant and the extruder by forklift, truck or crane.
Skip S5-3000e
| Capacity, compacted concrete | 2.5 m3 |
|---|---|
| Water volume | 3.0 m3 |
| Skip height | 2020 mm |
| Height, to the upper edge of the lifting bail | 3090 mm |
| Weight | 900 kg |
| Concrete discharge opening | 350x700 mm |
Skip S5-2000e
| Capacity, compacted concrete | 1.7 m3 |
|---|---|
| Water volume | 2.0 m3 |
| Skip height | 1640 mm |
| Height, to the upper edge of the lifting bail | 2710 mm |
| Weight | 800 kg |
| Concrete discharge opening | 350 x 700 mm |
Skip S5-2500m
| Capacity, compacted concrete | 2.2 m3 |
|---|---|
| Water volume | 2.5 m3 |
| Skip height | 2360 mm |
| Height, to the upper edge of the lifting bail | 3269 mm |
| Weight | 800 kg |
| Concrete discharge opening, diameter | 345 mm |
The Elematic Skip S5 is a cone-shaped steel container bucket with a two-part sector gate. The sector gate is operated electrically.
The Skip S5 is provided with fixed support legs, a hinged lifting bail and vibrator.
OPTIONS
- Power supply from the crane through a cable drum.
- Remote control
VARIANTS
- Skip S5, manually operated with a hand lever. (Skip S5-2500m)
