Side form

Elematic side for for half-slab long line

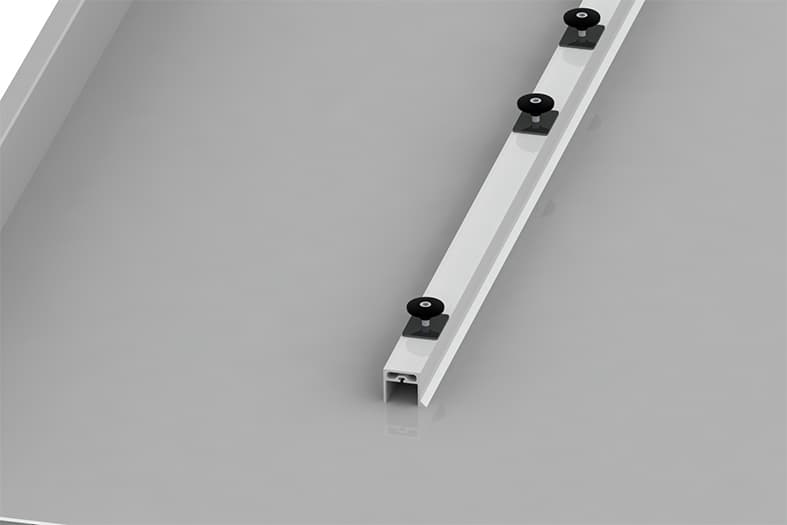

The Elematic side form is designed to be used in the production of half-slabs in a precast factory. It is made from aluminum and can be lifted manually without a crane.

Side form

Longitudinal side form

Standard height	60 and 70 mm
Standard length	500-3000 mm
Weight	3.8-4.4 kg/m
Yield strength	640 N/mm2

Cross cut side form

Height	70 mm
Length	2500-3800 mm
Width	200 mm
Weight approx.	8 kg/m

OPERATION

The Side form is made from aluminum and comes with push-button operated magnets. The magnets are engaged by pushing the button down and they are detached with a release tool. The magnets lock to the upper position magnetically and they hold the side form in position. The magnets are placed approximately 1.0 – 1.2 m apart.
