Shuttle E9

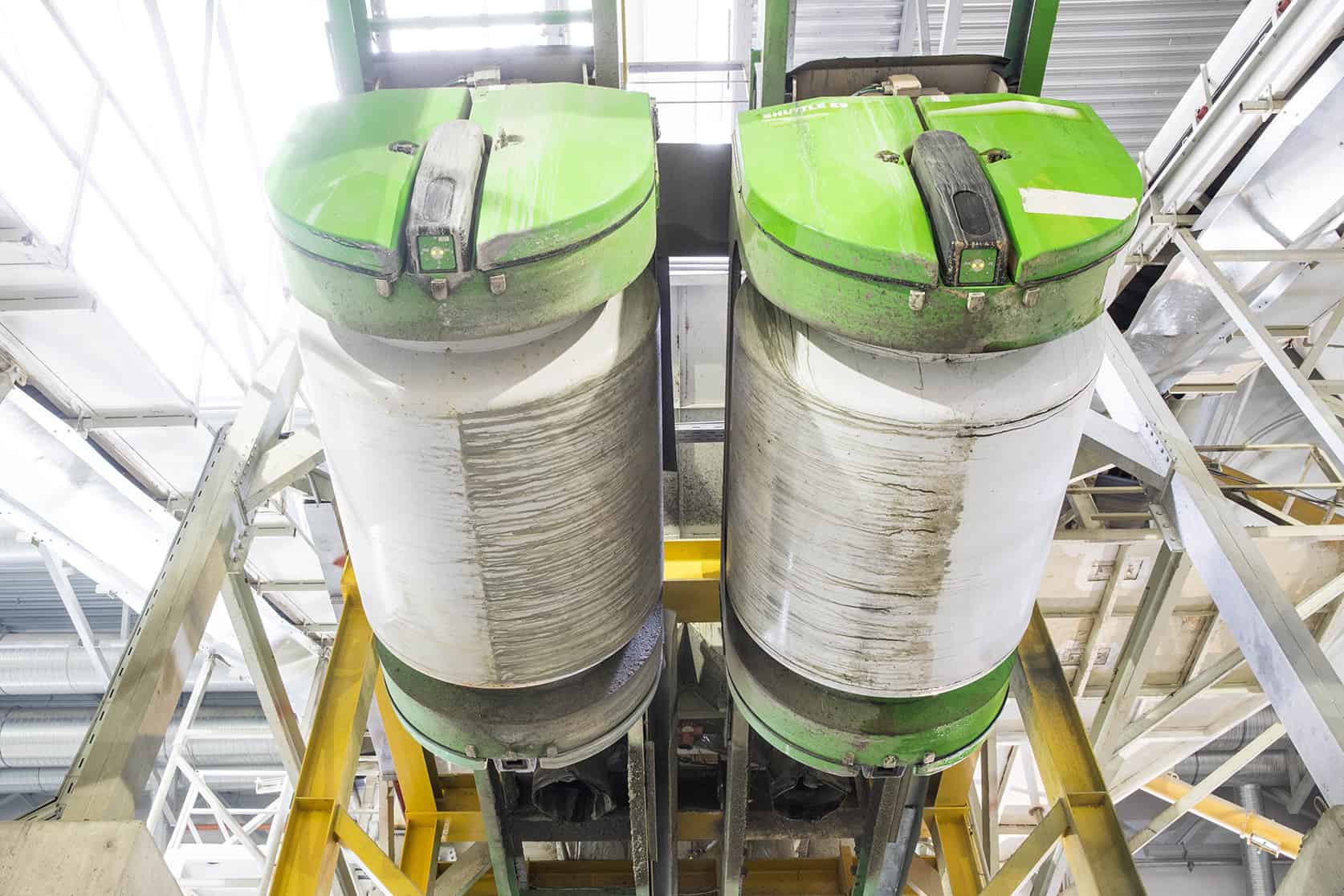

The Elematic Shuttle E9 is designed for fully automatic concrete distribution on a two‐rail track from the batching and mixing plant to an intermediate silo or to a casting machine in precast concrete production.
The Elematic fully automated concrete distribution system includes Shuttle E9, a track and a washing station. The system offers a fast and reliable way of distributing concrete between the B&M plant and desired casting spots. The system can be adapted to existing B&M plants.
Shuttle E9-3700
| Standard measurements | |
|---|---|
| Empty weight | 2000 kg |
| Weight with concrete | 9200 kg |
| Water volume | 3700 l |
| Wet concrete volume | 3000 l |
| The product can be customized |
Shuttle E9-3200
| Standard measurements | |
|---|---|
| Empty weight | 2000 kg |
| Weight with concrete | 8000 kg |
| Water volume | 3200 l |
| Wet concrete volume | 2500 l |
| The product can be customized |
Shuttle E9-2800
| Standard measurements | |
|---|---|
| Empty weight | 1650 kg |
| Weight with concrete | 6450 kg |
| Water volume | 2800 l |
| Wet concrete volume | 2000 l |
| The product can be customized |
OPERATION
The Shuttle E9 features fully automatic operation.
The shuttle has four-wheel drive and inverter-controlled travel motors. It offers a high driving speed of up to 3.2 m/s, which enables concrete to be transported to remote discharge points.

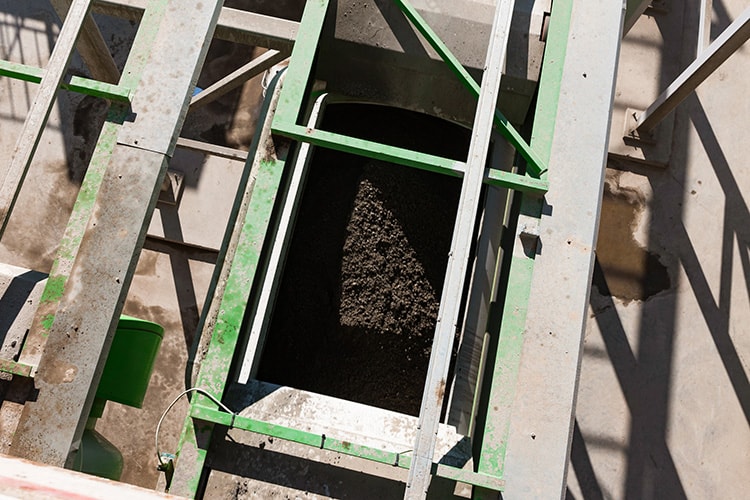

The shuttle is discharged by turning the bucket upside down with an inverter-controlled gear motor. The turning speed can be customized.
CONTROL SYSTEM
The Shuttle E9 features an ELiDIST control system. The programmable logic control (PLC) and sensors respond to the counter plates of the track. Travel on track is also controlled by the PLC, and the shuttle receives instructions from the current rail. It can also be manually operated with a remote control.
BUILT-IN SAFETY
The Shuttle E9 meets EC Machine Directive requirements and comes with a thorough and clear operator, maintenance, and safety manuals in the required language.
CONSTRUCTION

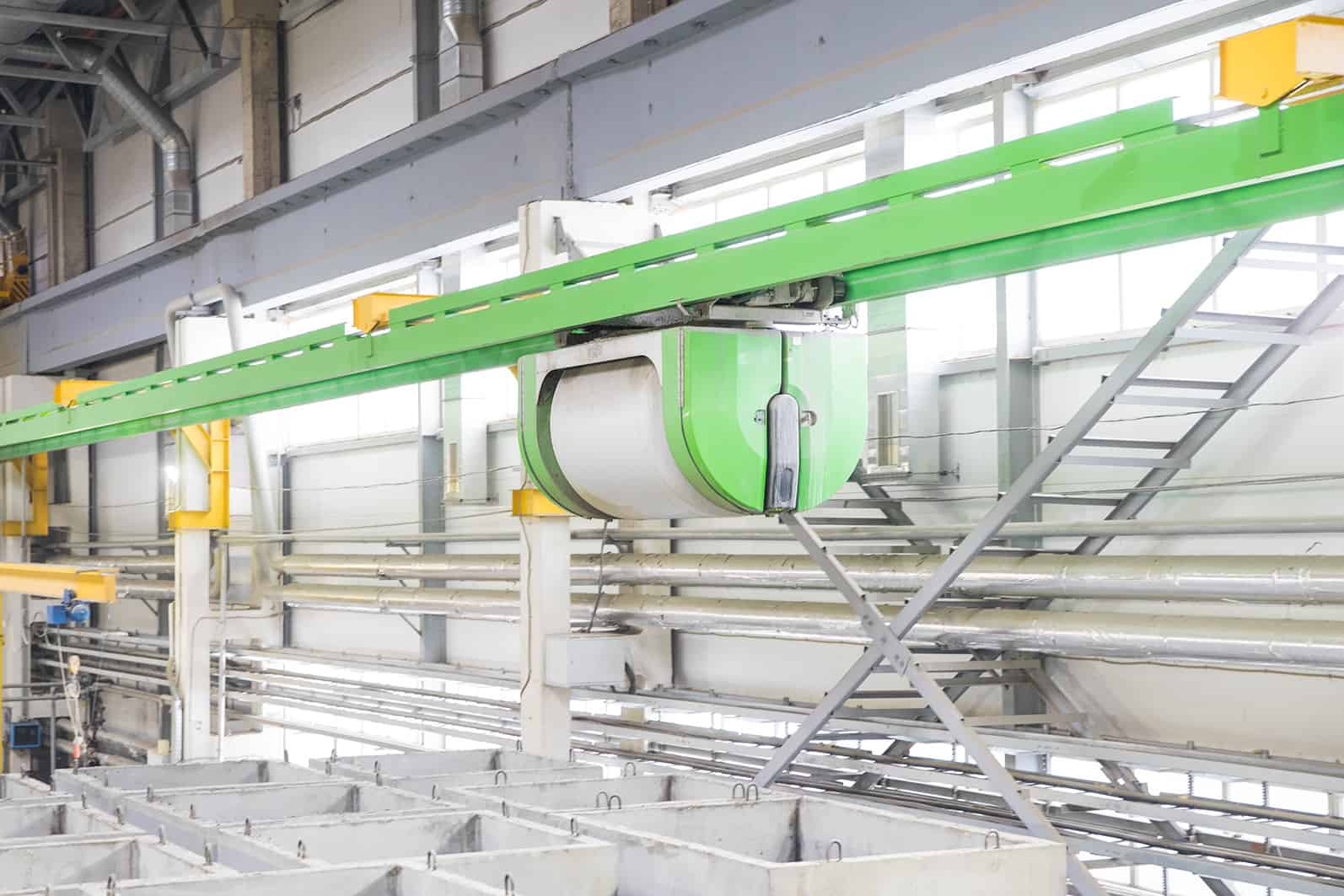

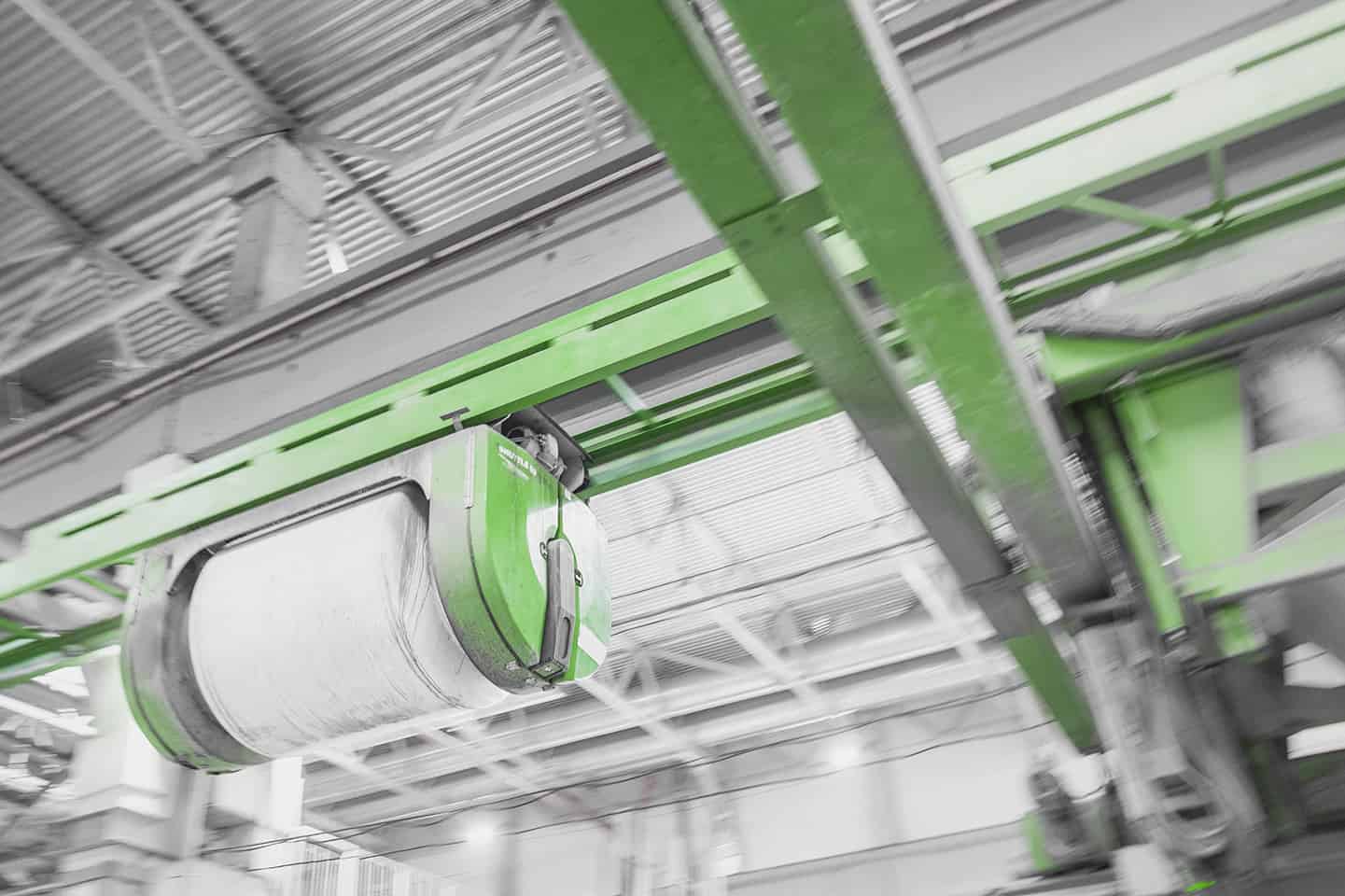

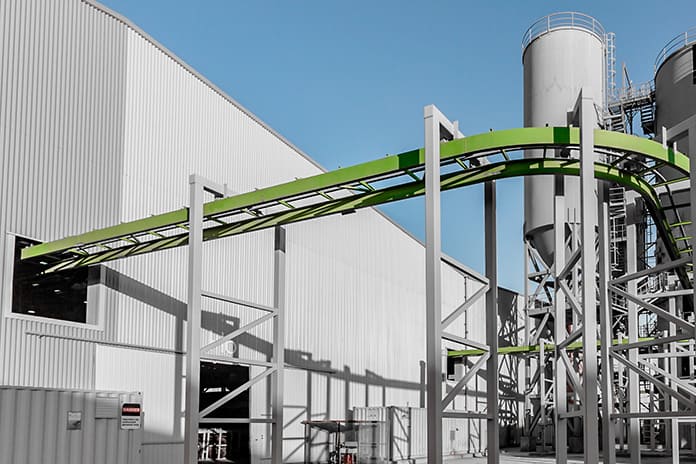

The Shuttle E9 is compatible with both straight and curved tracks. It uses tracks with a narrow design for efficient use of floor space in precast plants.
The structure of the shuttle is protected against damage caused by water and concrete. The bucket mantle is made of wear‐resistant steel.
The shuttle has polyurethane wheels for silent travel.
SPEED
MAXIMUM SHUTTLE SPEED ON STRAIGHT SECTIONS OF TRACK
Straight track
- Shuttle loaded: 2.6 m/s, shuttle empty: 3.2 m/s
Track with max. inclination angle 5 degrees (9%)
- Shuttle loaded: 2.0 m/s, shuttle empty: 2.5 m/s
Track with max. inclination angle 9 degrees (16%)
- Shuttle loaded: 1.6 m/s, shuttle empty: 2.0 m/s
The speeds above apply only to the standard wheel size of Ø260.
MAINTENANCE
The washing station is equipped with high-pressure water nozzles and a high-pressure water pump for cleaning. There are two different models available, one for cleaning the inside only and the other for cleaning both the inside and outside of the shuttle.
VARIANTS
- The Shuttle E9 is available in standard sizes of 2.0 m3, 2.5 m3, 3.0 m3 (wet concrete).
OPTIONS
- Polyurethane coating for the shuttle bucket mantle
Compatibility
Benefits
-
Speeds production
Fast and automatic transportation of concrete to the casting place increases production capacity.
-
Long transportation distances
Fast travelling speed allows transporting concrete even to remote discharge points.
-
Improves working conditions
Polyurethane wheels ensure low noise working environment.
