Frame caster P7

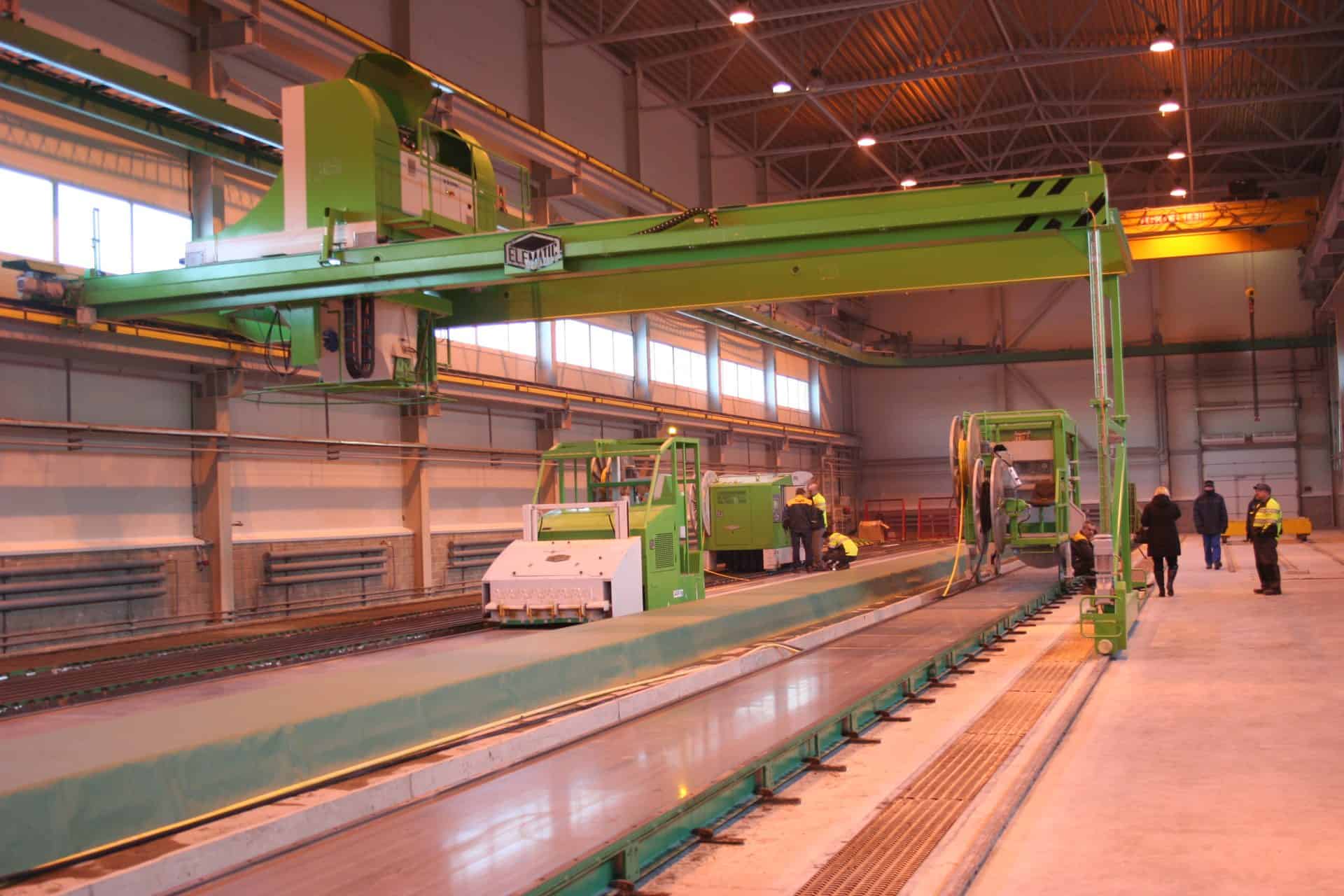

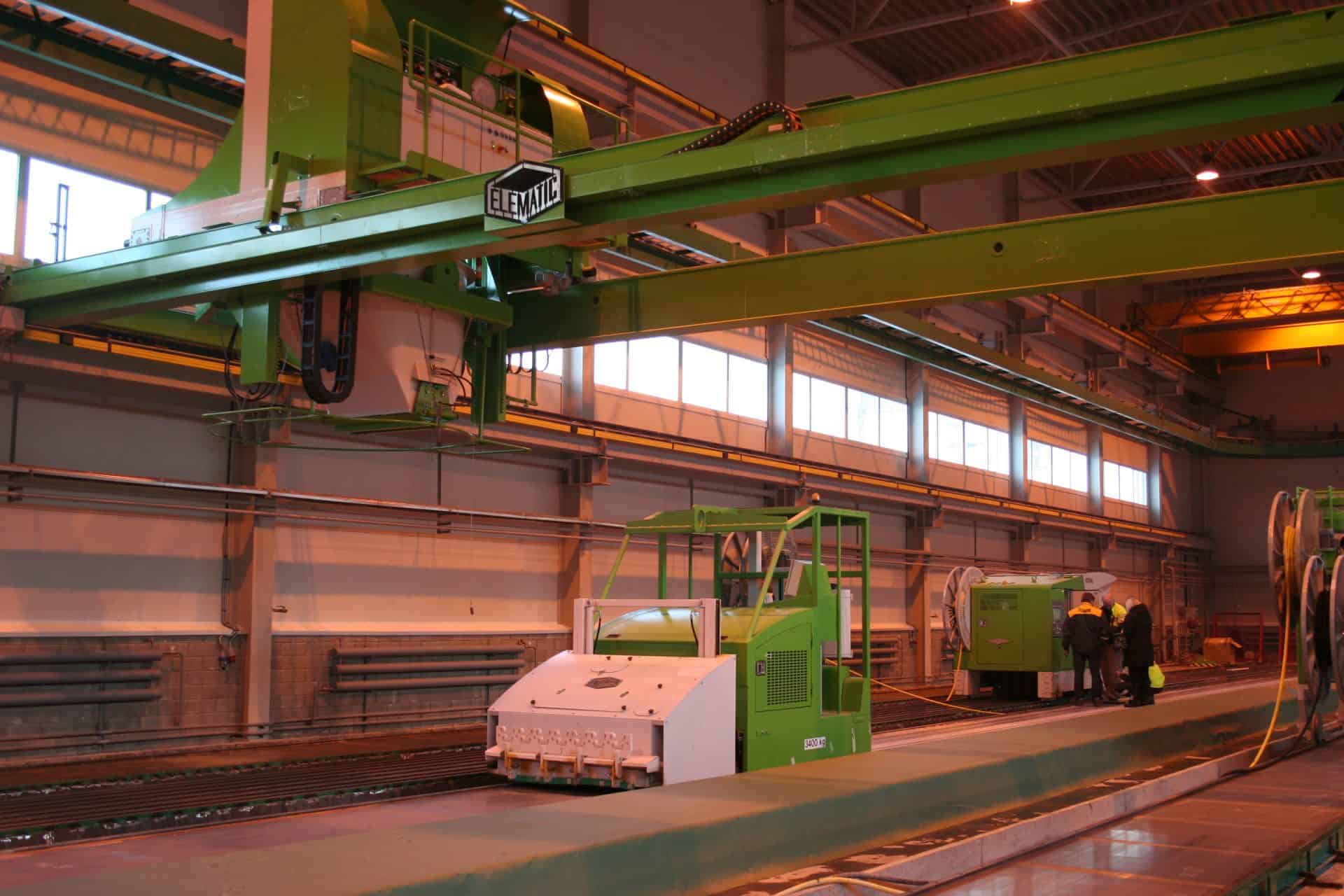

The half-portal or bridge-type Elematic frame caster P7 provided with sector gates is designed for dosing of concrete into beam molds and as intermediate concrete storage between the concrete transport line and the extruder.
Frame caster P7
| Capacity, compacted concrete | 2.0 m3 |
|---|---|
| Water volume of casting bucket | 2.9 m3 |
| Span length (L) * | 8,000 mm – 23,000 mm |
| Lifting movement of casting bucket | 2000 mm |
| Weight * | 8,000 kg – 15,000 kg |
| Lifting speed of casting bucket | 0.09 m/s |
| Concrete discharge opening | 490 x 980 mm |
| Rotation of casting bucket | 90° |
| Rotation speed of casting bucket | 90°/10 s |
| Bridge traveling speed max. | 0.5 m/s |
| Traveling speed of bucket max. | 0.5 m/s |
| Connecting power | 16 kW |
| Power supply | 3P+PE, 400V, 50 Hz |
| Power supply/USA | 3P+PE, 480V, 60 Hz |
| *depending on the Frame caster type |
OPERATION
The sector gates of the frame caster P7, lifting and rotating of the casting bucket are hydraulically operated.
The casting bucket is equipped with a vibration motor.
BUILT-IN SAFETY
The frame caster P7 meets EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in required language.
OPTIONS
Automation of casting machine
Power supply to the extruder
Power supply cables, trolleys, etc. or current conductor rails
Traveling rails
